Weather Pack Splices
Crimp an adhesive lined heat-shrink butt connector onto
wire, apply heat, and shrink the tubing for a secure, sealed
connection. Cold-crimp moisture-resistant butt connectors
are filled with a heat-resistant grease. and are double-
crimped onto wire.

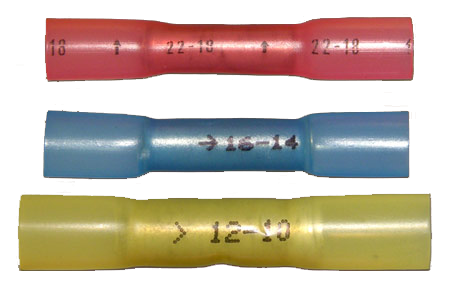

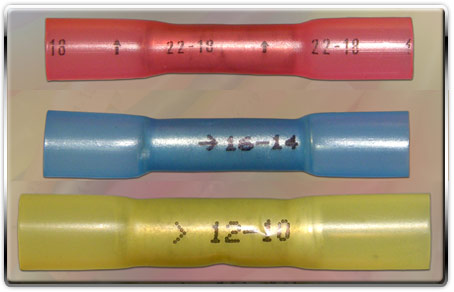

Adhesive Lined Heat Shrink Butt Connectors
- The finest environmentally-sealed
splicing device available
- The best seal
- The best strain relief
- Tough cut-resistant insulation
- Resistance to most chemicals
- Seamless annealed copper tube within
a tough TMW polyolefin heat shrink insulation lined
with heat-activated adhesive
- Crimp with standard crimp pliers
and heat
- With 275° F of heat applied
with heat gun or torch, the insulator shrinks tightly
to wire and the adhesive flows to seal the splice.
- Rated for temperature range -67° F
to +230° F.
| Part Number |
Wire Range |
Color |
| 61-SH |
22-18 gauge |
Red |
| 62-SH |
16-14 gauge |
Blue |
| 3-SH |
12-10 gauge |
Yellow |

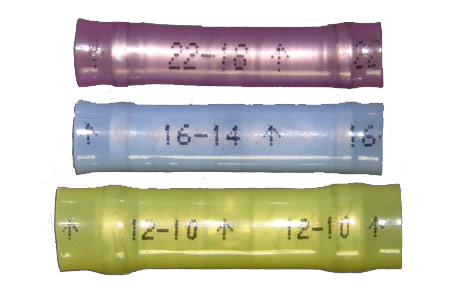

Cold Crimp Moisture Resistant Butt Connectors
- No heat gun or torch required
- Good protection with easy installation
- Installed with standard crimp pliers
- Tough translucent Nylon insulator
- Double-crimp brass insulation grips
- Fully annealed E.T.P. copper interior
- Filled with non-toxic heat-stabilized
grease
- Resistant to salt spray and
most automotive chemicals
| Part Number |
Wire Range |
Color |
| 61-NBM |
22-18 gauge |
Red |
| 62-NBM |
16-14 gauge |
Blue |
| 63-NBM |
12-10 gauge |
Yellow |
|
