Designed for professional use. Equivalent to Delphi Packard tools as noted. Compound-leverage mechanism ensures crimp accuracy and reduces user fatigue.
NOTE: Variations in terminal metal thickness, wire stranding, and insulation diameter may affect the ranges of the crimping tools described below.
Equivalent to: Delphi/Packard 12014254, SPX Kent Moore J-38852
Crimps Weather Pack terminal and seal in one cycle. Features two double cavities, an orientation block and a ratchet mechanism to ensure that each crimp cycle is completed. Factory calibrated to be used only with Weather Pack terminals and seals. Wire range 20-14.
Equivalent to: Delphi/Packard 12085270, SPX Kent Moore J-38125-6
Wire range 20-14 gauge maximum. Two crimping cavities and three seal-clinching cavities cover a wide variety of applications including Weather Pack and Metri-Pack. Will clinch seals on Metri-Pack 150, 280, 480 and 630 Series. Ratchet mechanism ensures completion of crimp cycle.
6285847 equivalent
Maximum range is 20-10 AWG with two crimping cavities. Supplied WITHOUT ratchet mechanism to allow user to perform partial crimp in one cavity and shift to another. Crimps difficult .030 wall 12 gauge terminals.
12040070 equivalent
Designed to crimp doubles (two wires) within maximum range 20-14 AWG. Supplied WITHOUT ratchet mechanism to allow user to perform partial crimp in one cavity and shift to another. Also performs partial or complete crimps on difficult “singles” including 10 gauge 56 Series male and female terminals.
Equivalent to Delphi/Packard 12085271, SPX Kent Moore J-38125-7
Compound leverage ratchet mechanism reduces operator fatigue, ensures crimp completion and provides exactly the same crimp time after time. Conductor maximum crimp range is 22-12 AWG. Insulation maximum crimp range is 24-14 AWG.
Not available from Delphi Packard

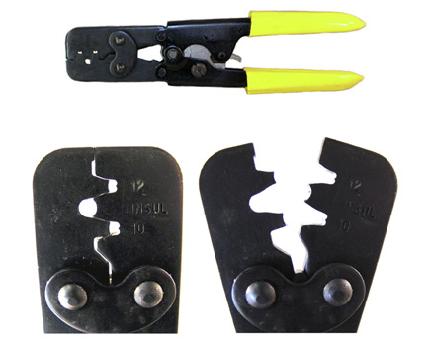

This specialty tool is designed to crimp sealed Metri-Pack 280 terminals in wire sizes 12 and 10, along with 12-gauge Weather Pack terminals. It can be used to crimp most open-barrel terminals in the 12-10 AWG wire range. The ratchet mechanism ensures that each crimp cycle is completed.
12071687 equivalent
Non-ratchet tool designed to crimp sealed Metri-Pack series 480 and 630 terminals and cable seals, 12-10 gauge. Supplied with “stay closed” latch for convenient storage.
